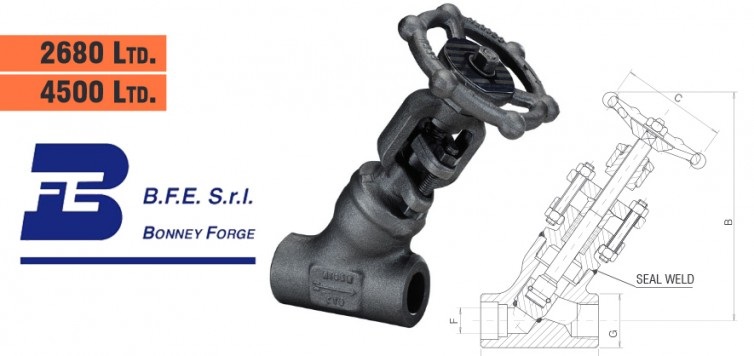

Bonney Forge Welded Bonnet (Y type)- 2680 lb. & 4500 lb. Globe Valves

Category: Product ID: 187


Design construction:
ASME B16.34 Limited Class
Testing according to API 598
Marking MSS SP25
Outside Screw and Yoke (OS&Y)
Self aligning two piece packing gland
Integral backseat
Body bonnet weld to ASME IX
Loose solid disc
Socket Weld Ends to ASME B16.11
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25
– carbon steel class 2680
6700 psig @ 100°F
462 bar + 38°C
– carbon steel class 4500
11250 psig @ 100°F
776 bar + 38°C
