Cim 50 Gate Valve – Compact Type – PN 16

Categories: , , Product ID: 320


This article was made in compliance with the quality management requirements of ISO 9001 standard.
All articles are tested according to the EN 12266-1 standard.
It can be used in a wide variety of sectors: heating, air conditioning, water, sanitary systems, oil pipelines, gasoline
networks, saturated steam and generally with any non corrosive liquid.
It is guaranteed for 5 years
It is made of a brass alloy that complies with standard EN 12165-CW617N-M.


Nominal Pressure: PN16
Operating temperature: -10 ÷ 150°C

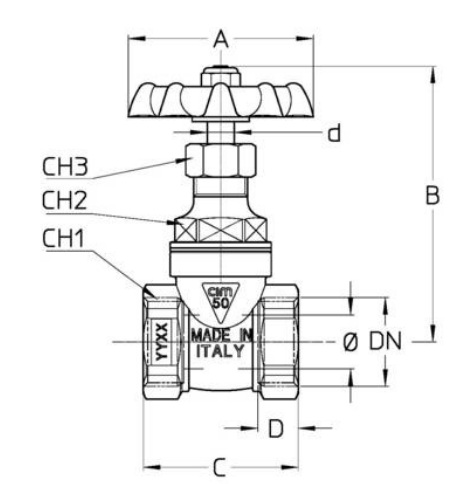

Technical Drawing
