Cim 95 Filtering Foot Valve

Order Now
Cim 95 Filtering Foot Valve

This article was made in compliance with the quality management requirements of standard
ISO 900
1:2008.
All articles are tested according to the standard EN 12266-1:2003.
It is used in a wide variety of sectors for non-return piping systems: pump installations, in wells and agricultural
systems and generally with any non corrosive liquid.

It is guaranteed for 5 years.

It is made of a brass alloy that complies with standard EN 12165-CW617N-M.

Nominal Pressure: PN 16
Operating temperature: -10 to 40°C

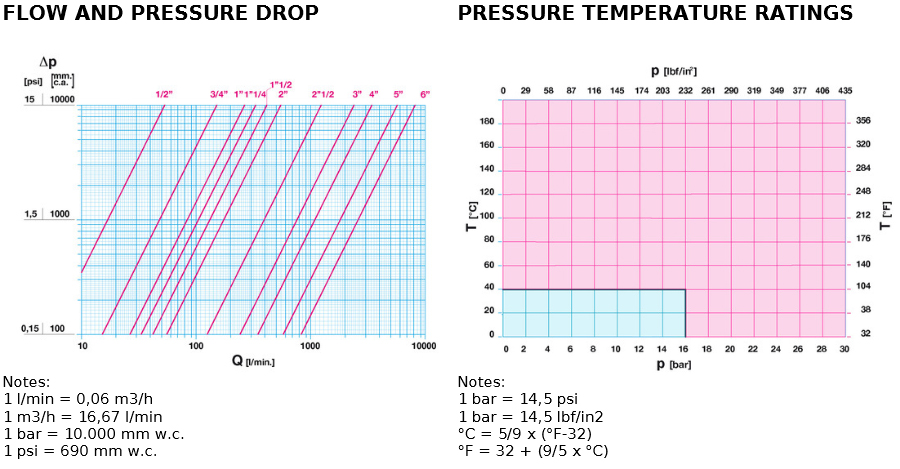

Cim 95 Filtering Foot Valve 2

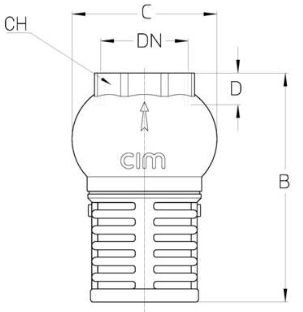

Technical Drawing

Cim 95 Filtering Foot Valve 3

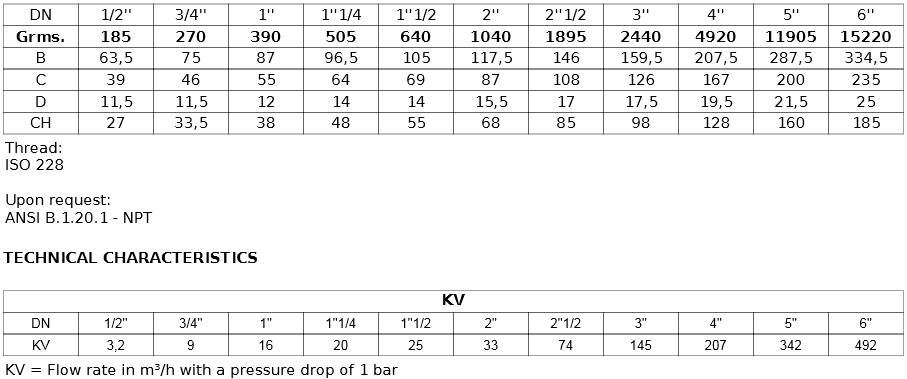

Cim 95 Filtering Foot Valve 4
