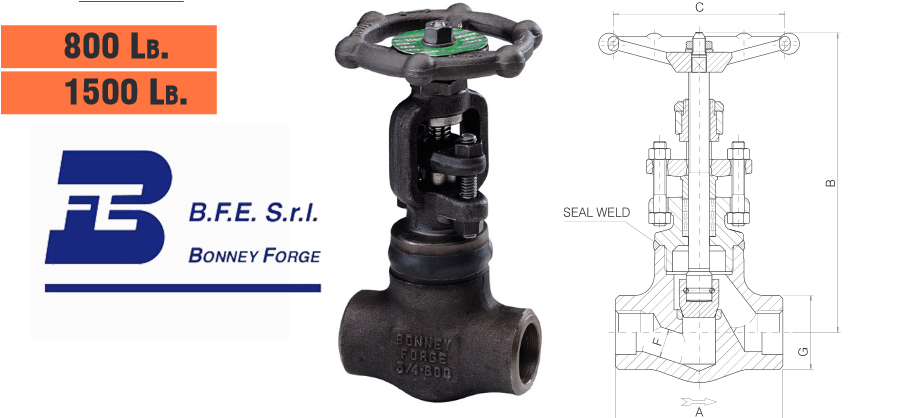

Description
Design construction:
ASME B16.34 – BS 5352
Testing according to API 598
Marking MSS SP25
Outside Screw and Yoke (OS&Y)
Self aligning two piece packing gland
Integral backseat
Body bonnet weld to ASME IX
Loose solid disc
Socket Weld Ends to ASME B16.11
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25

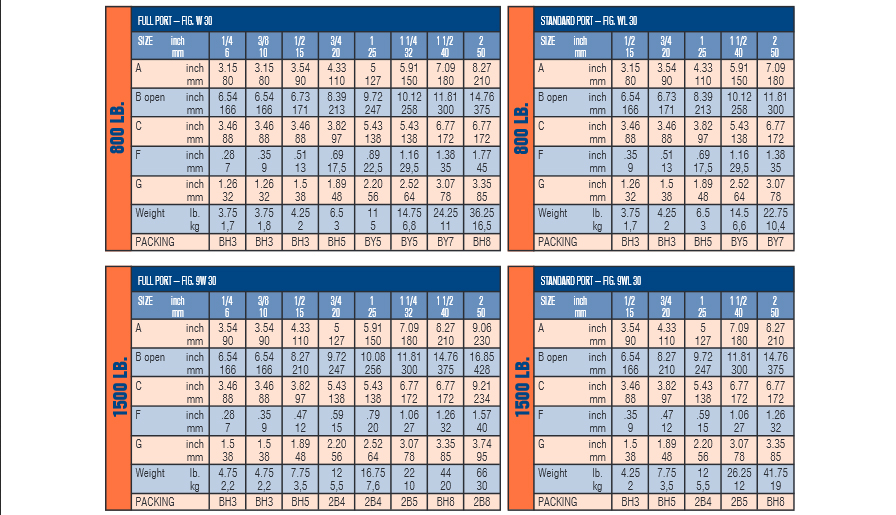

Ratings:
– carbon steel class 800
1975 psig @ 100°F
138 bar + 38°C
– carbon steel class 1500
3705 psig @ 100°F
255 bar + 38°C
