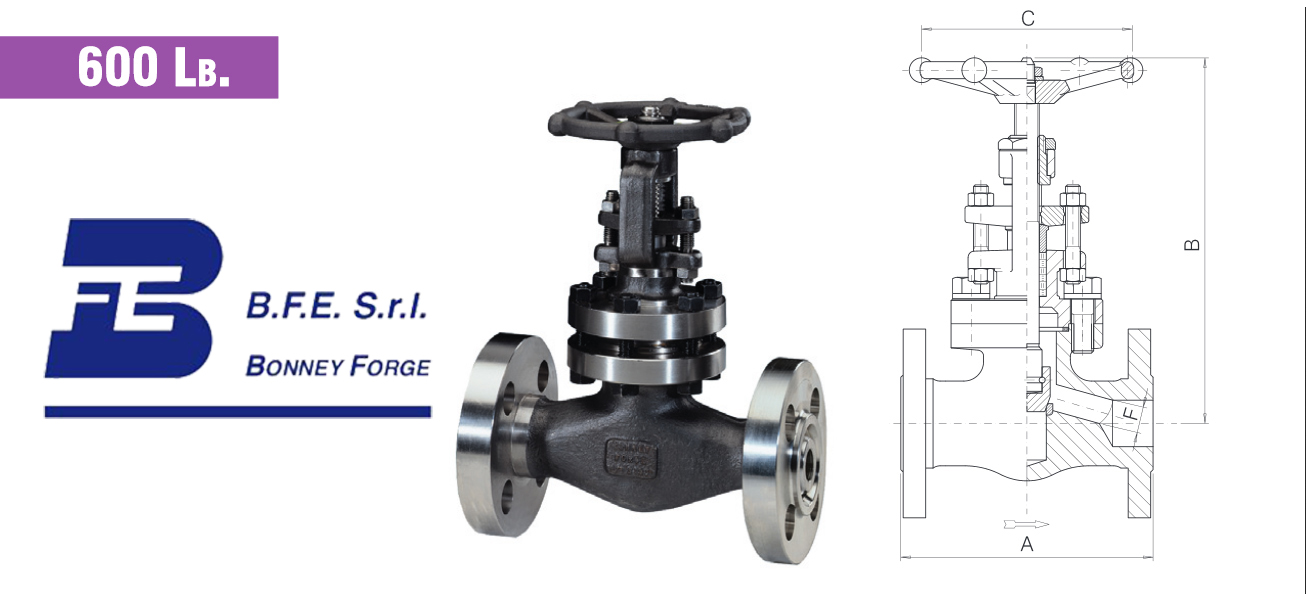

Globe Type- Bolted Bonnet- 600 lb. valves

Categories: , Product ID: 246


Design construction:
ASME B16.34 – BS 5352
Testing according to API 598
Marking MSS SP25
Loose disc stem assembly
Outside Screw and Yoke (OS&Y)
Self aligning two piece packing gland
Spiral wound gasket
Integral backseat
Integral body flanges
Face to face according to ASME B16.10
Flanges according to ASME B16.5
– carbon steel class 600
1480 psig @ 100°F
102 bar + 38°C
