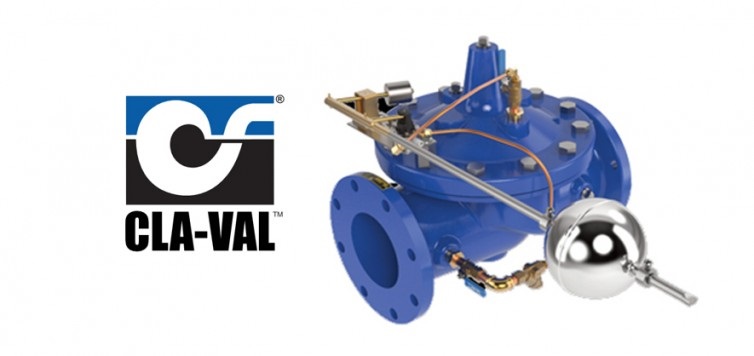

Cla-Val 124-01 Float Valve

Categories: , Product ID: 2668


Cla-Val 124-01 Float Valve Features

  • Accurate and Repeatable Level Control
  • On-Off or Non-Modulating Action
  • Fully Adjustable High and Low Level Settings
  • Simple Design, Proven Reliable
  • Easy Installation and Maintenance


The Cla-Val Model 124-01 Float Valve is a non-modulating valve that accurately controls the liquid level in tanks. This valve is designed to open fully when the liquid level reaches a pre-set low point and close drip-tight when the level reaches a preset high point.
This is a hydraulically operated, diaphragm valve with the pilot control and float mechanism mounted on the cover of the main valve. The float positions the pilot control to close the valve when the float contacts the upper stop. The high and low liquid levels are adjusted by positioning the stop collars on the float rod. The difference between high and low levels can be adjusted to as little as one inch, or to as much as eighteen inches.
Level settings can be as much as eleven and one half feet below the valve. The float mechanism may be located remotely from the main valve. See the technical data sheet on Model CF1-C1 Float Control for additional information.

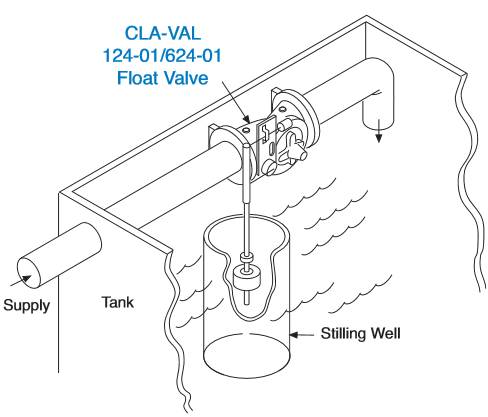

Typical Applications


The Model 124-01 Float Valve is commonly mounted above the high water level in a tank. Globe pattern valves are supplied standard with the float control mounted on the cover as illustrated, with a horizontal discharge. Angle valves are configured to discharge downward.
1. We recommend protecting tubing and valve from freezing temperatures.
2. Must be inspected periodically.
